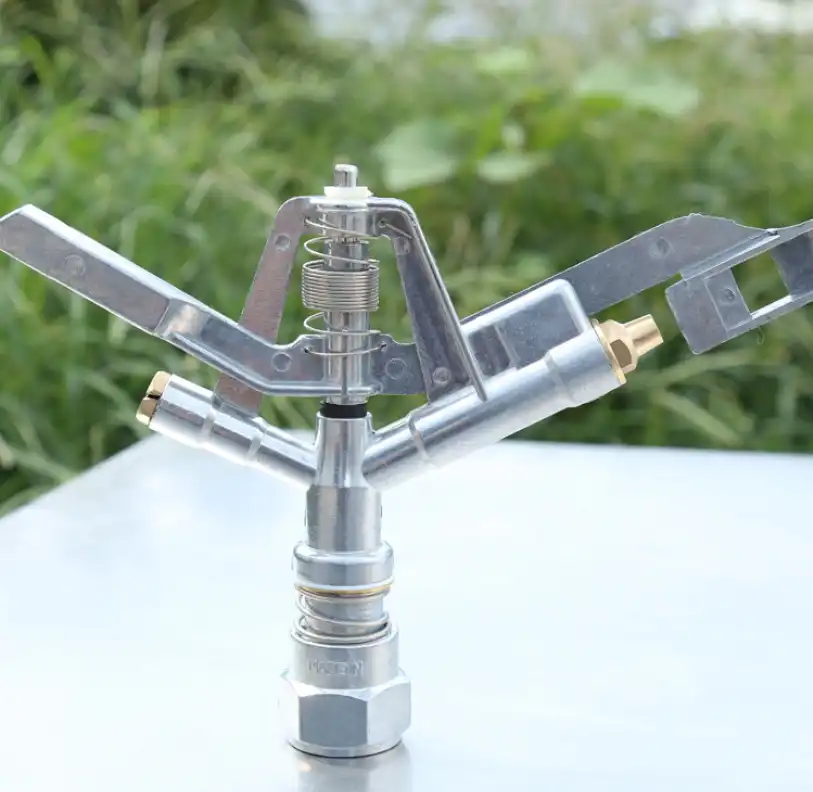

Field Micro-spray Impact Sprinkler

When the pressure water is ejected from the nozzle of the sprinkler, it impacts the deflector through the baffle plate to make the rocker produce tangential motion force around the angle of rotation of the cantilever. Then it returns and impacts the nozzle under the action of the spring of the sprinkler to make the nozzle rotate an angle. Repeat the action, the sprinkler can rotate in full circle. If the limiting device and reversing mechanism are set on the sprinkler, the nozzle can be reversed and rotated after rotating a certain angle, the fan-shaped spraying irrigation can be carried out.

The structure of the sprinkler is simple. However, in the case of wind and uneven installation, the spraying uniformity will be affected due to uneven rotating speed. It will not work normally under vibration. It is suitable for fixed medium pressure spraying irrigation system.
